Purpose built 40 Lane golf ball retrieval cart designed specifically for driving ranges and golf course operations.
Ball Picker
| Overall Dimensions | 130" × 47" × 71" (3300 × 1200 × 1800 mm) |
|---|---|
| Maximum Load | 1980 LBS (900 kg) |
| Battery | Lithium Iron Phosphate 48V 105Ah |
| Motor | 4 kW PMSM Motor |
| Picker | Front-mounted 40 Lane 2.2m Picker — dual-row configuration for maximum coverage |
| Hopper Capacity | Up to 3,000 golf balls (standard) |
| Unload Method | Manual dump / tilt hopper (optional hydraulic dump) |
Product Description
The WINTAO Ball Picker is the dedicated workhorse of our Utility Vehicle Series — a purpose built 40 Lane golf ball retrieval cart designed specifically for driving ranges and golf course operations. Built on a heavy-duty cargo platform, it features a front-mounted ball picker mechanism and a large-capacity ball hopper, engineered to maximize efficiency, minimize labor, and keep your range running smoothly all day long.
Purpose-Built Ball Retrieval System

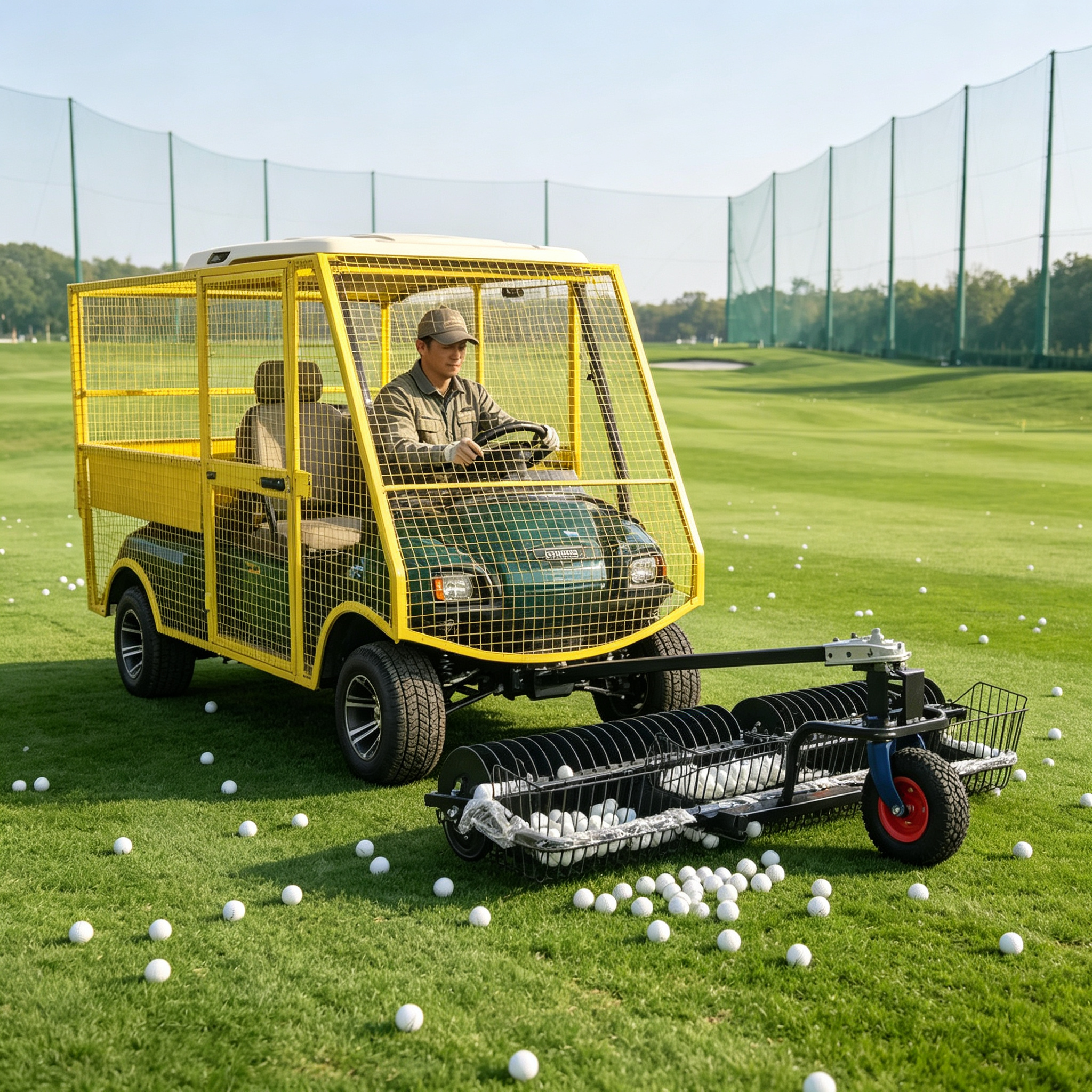

- Front-mounted ball picker mechanism — 40 Lanes ensure best efficiency
- Large-capacity ball hopper — up to 3,000 balls capacity, fewer trips to unload
- 360° protective cage — operator safety in busy range environments
- 75–85 km range per charge — a full day of continuous operation
- 4 kW AC motor with 20% gradeability — handles rolling terrain with loaded hopper
- Rugged carbon steel frame — built for daily commercial use
|
Hand Collection
|
WINTAO Ball Picker
|
|
|
Daily Collection
|
~5,000–10,000 balls
|
Up to 60,000 balls
|
|
Labor Required
|
2–4 people
|
1 operator
|
|
Unload Trips per Day
|
100+
|
30–60
|
|
Collection Speed
|
1–2 km/h walking
|
5–8 km/h driving
|
|
Daily Labor Cost
|
High (×3–4 workers)
|
Low (×1 operator)
|
Key Highlights

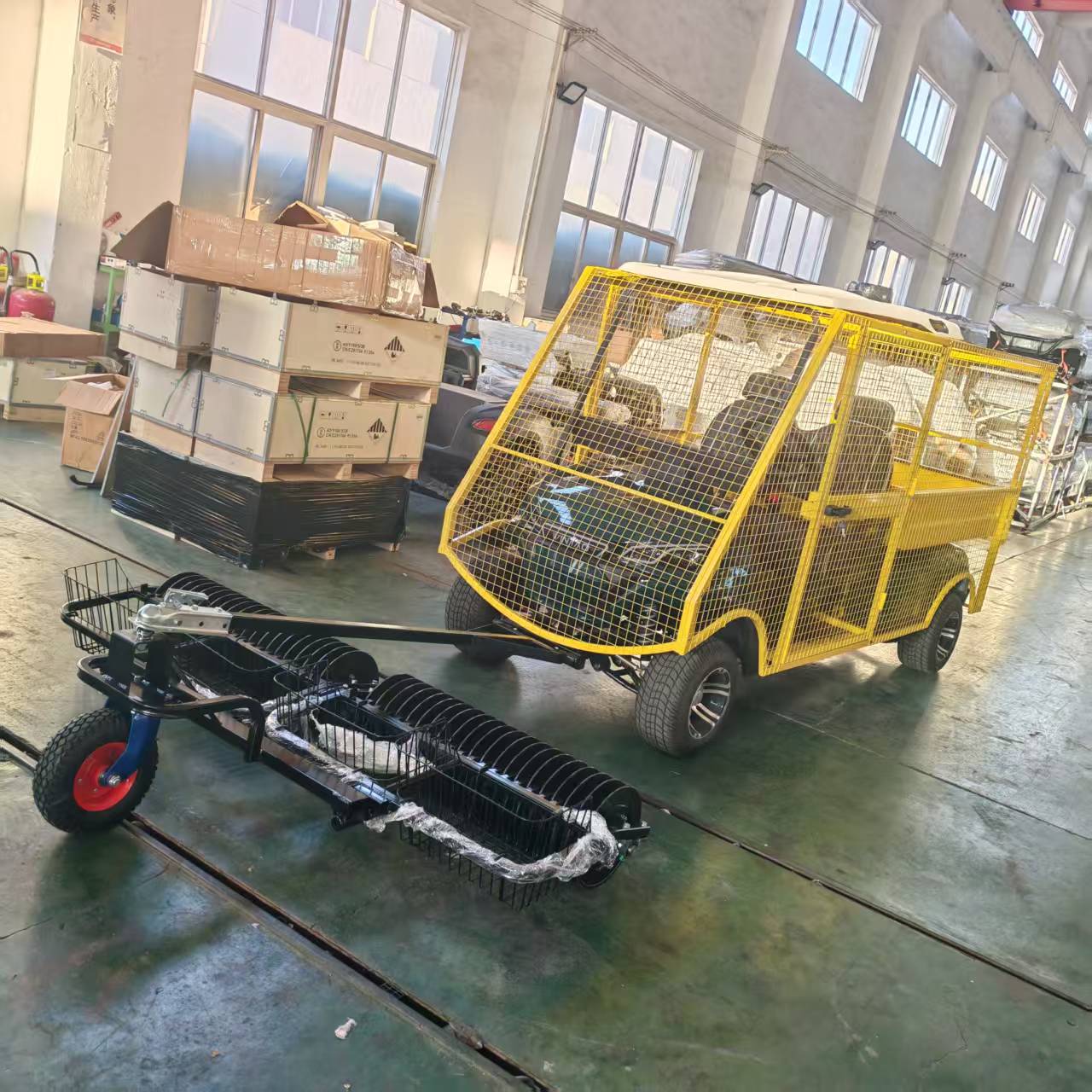

40-Lane Picker Mechanism
40 independent collection lanes with 86 cm (34″) picking width — automatic collection as you drive, no manual work required.

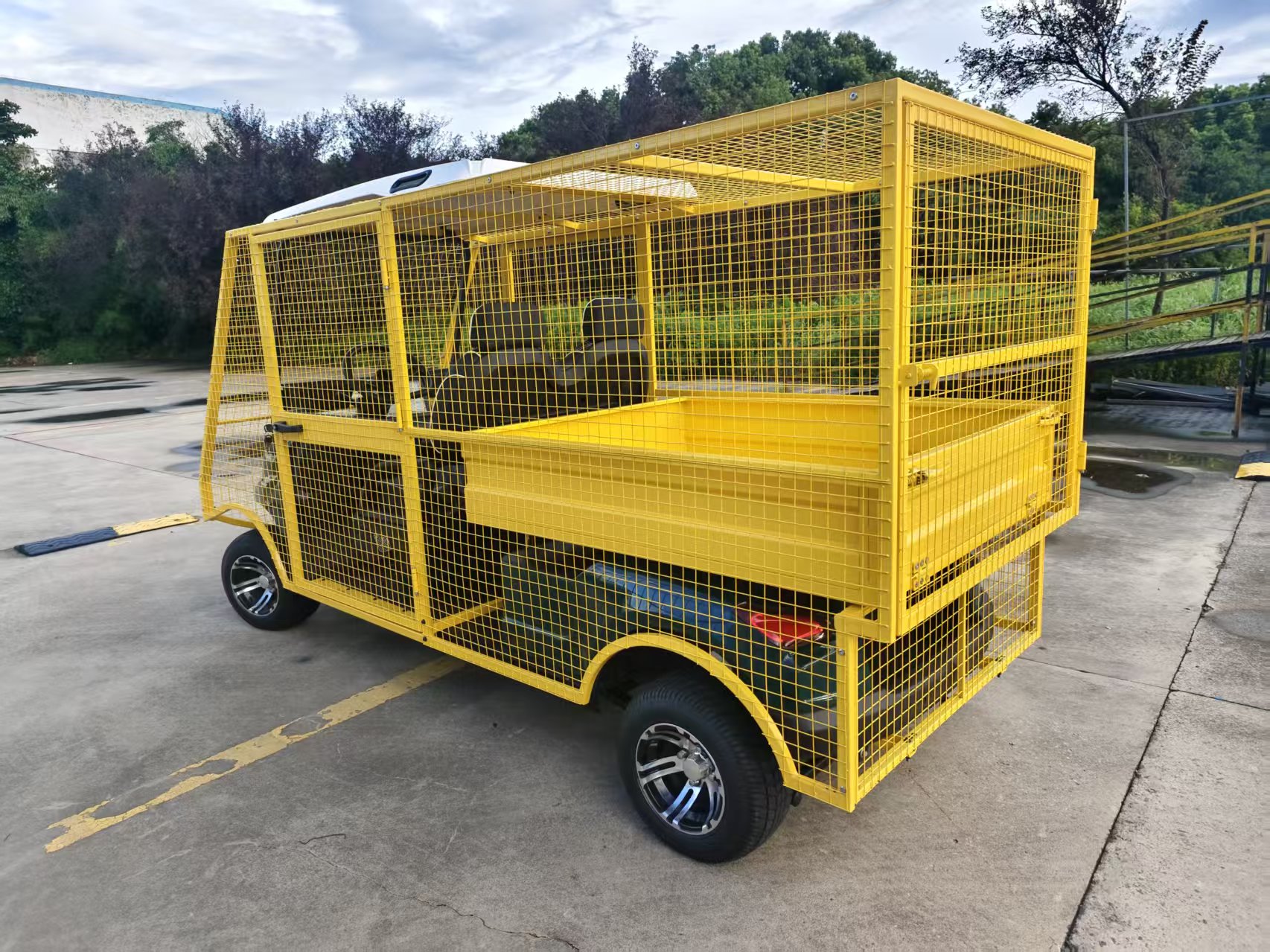

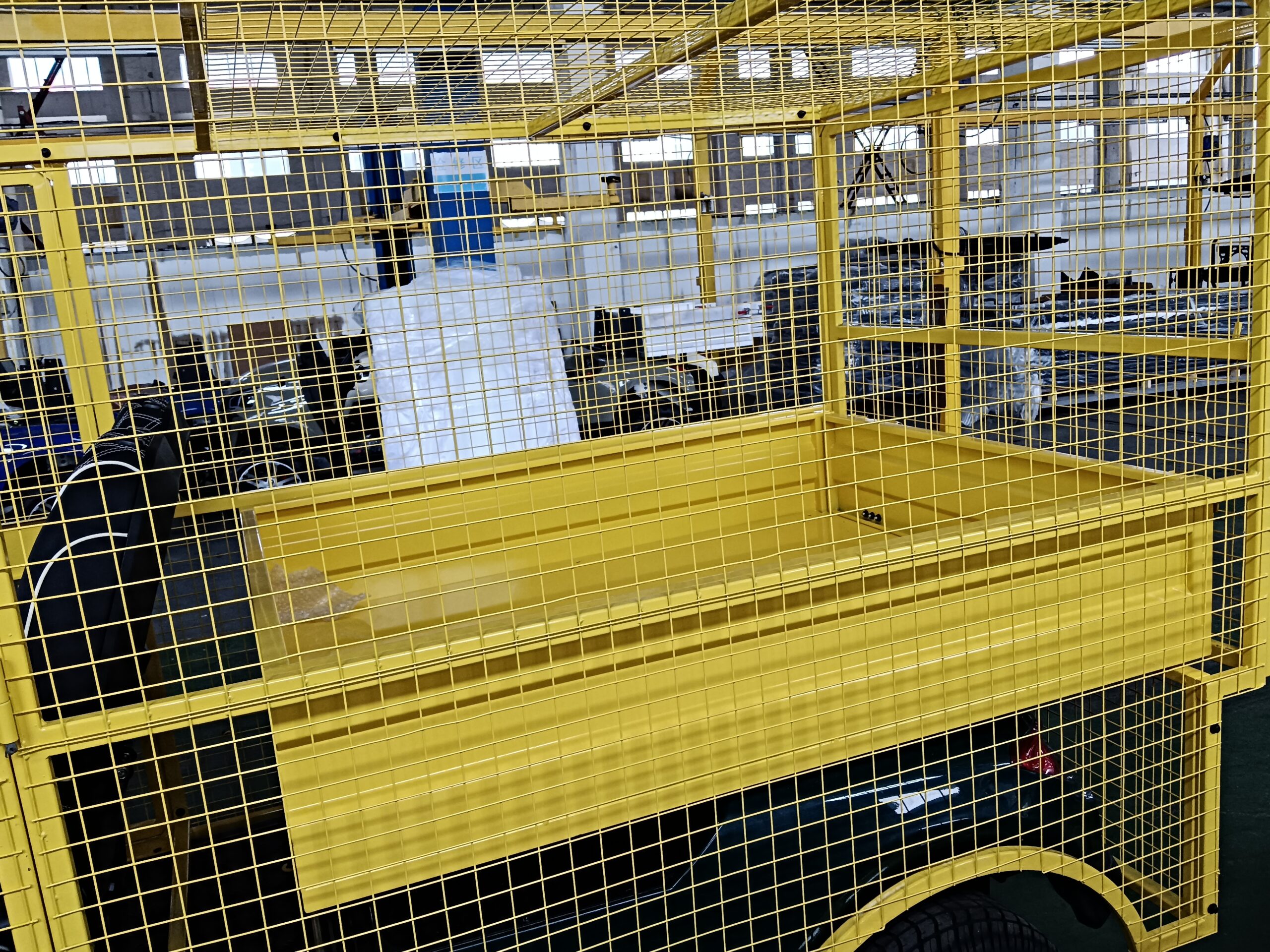

3,000-Ball Hopper
Holds up to 3,000 golf balls per run — dramatically reduces unload trips, even on high-volume ranges.
Up to 60,000 Balls / Day
Collects up to 60,000 balls per day — cuts labor hours by 70% or more compared to hand collection.
All-Day Operation
75–85 km range on 4–6 hour charge with 48V 105Ah LiFePO₄ battery — a full shift without recharging.

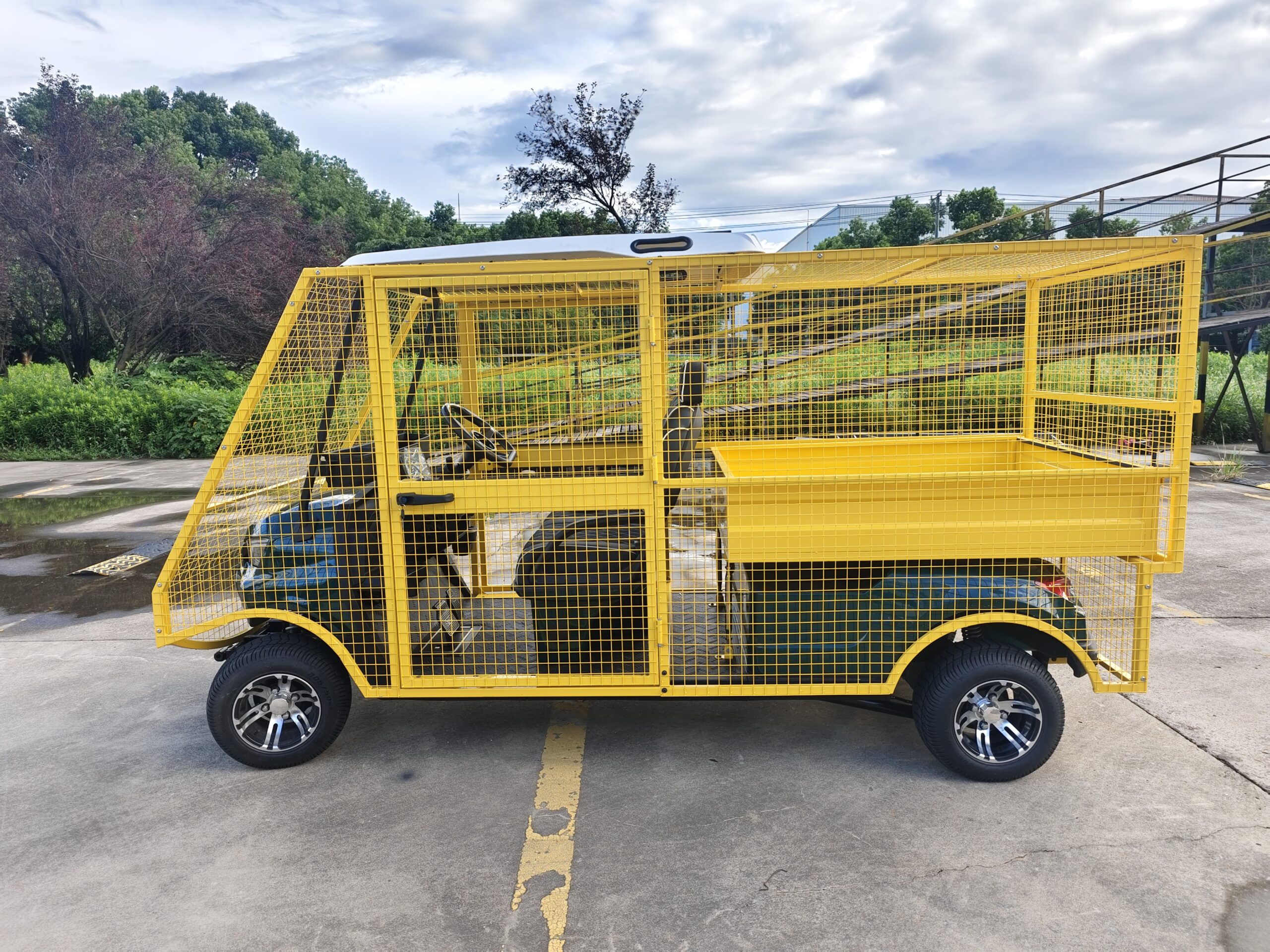

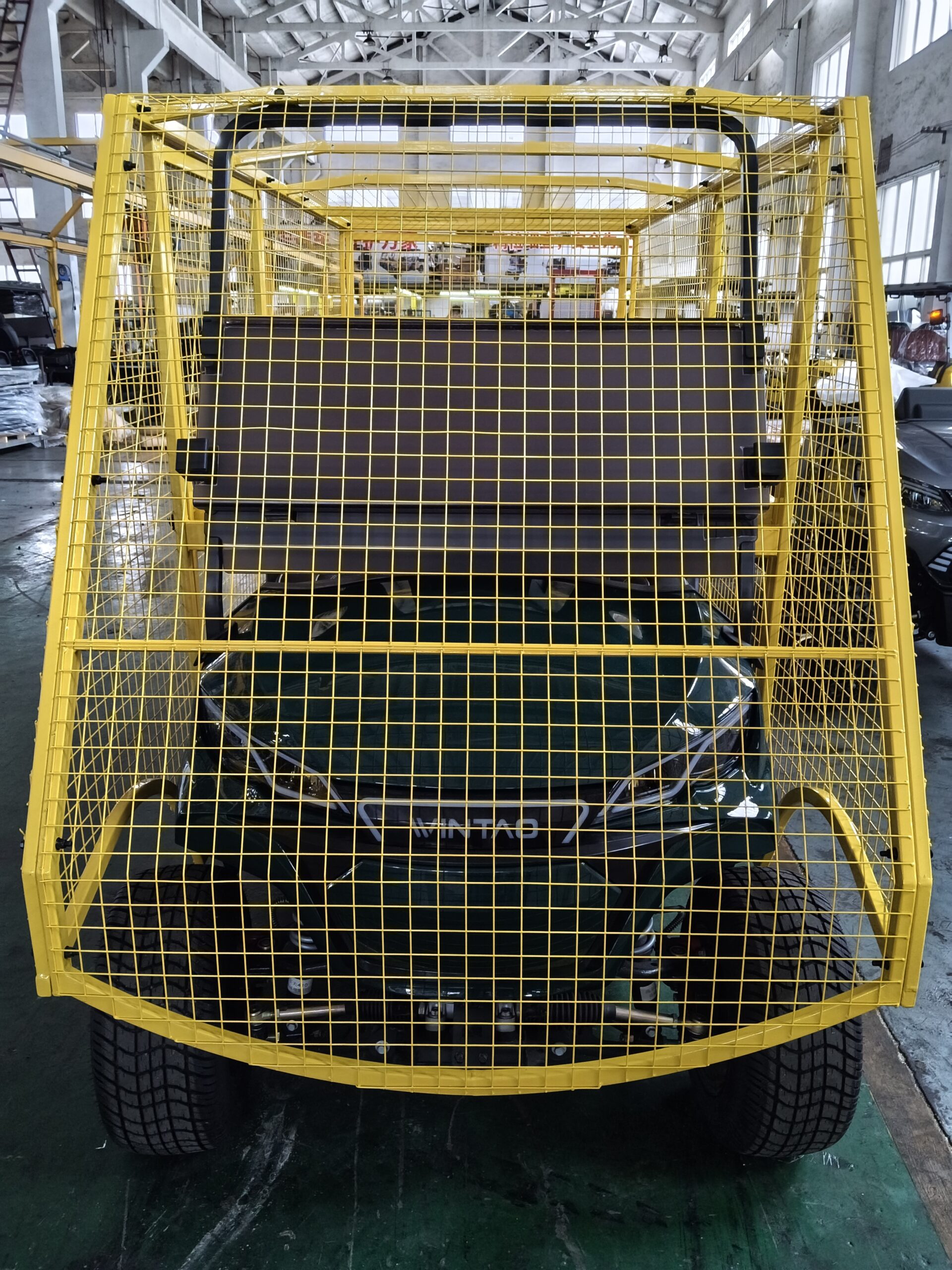

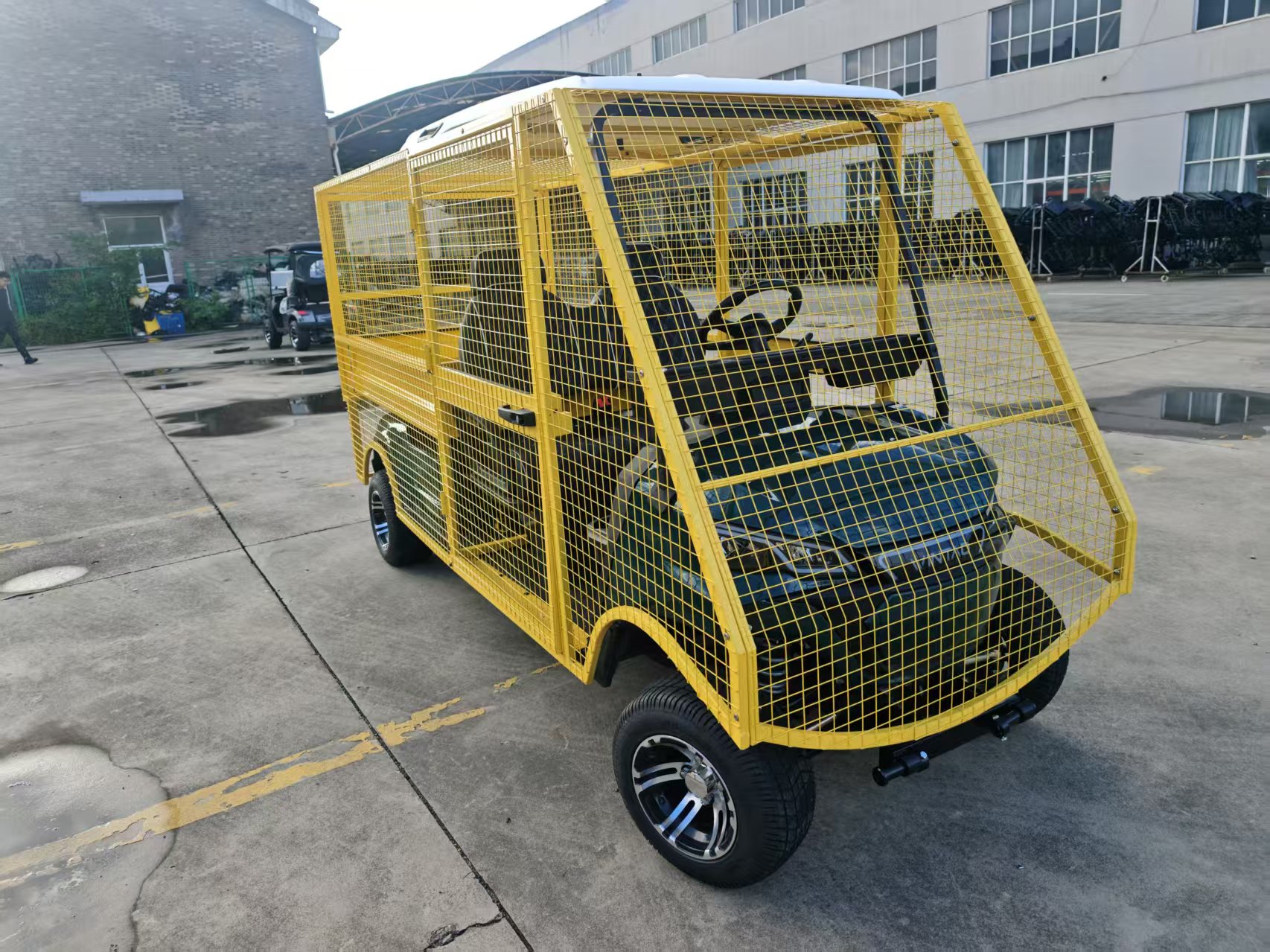

360° Operator Safety Cage
Full perimeter protective cage surrounds the operator for safety in active range environments.
Heavy-Duty Commercial Build
High-strength carbon steel frame with rust-proof treatment — built for daily commercial use for years.
Specifications subject to change without notice. © 2026 WINTAO EV.
